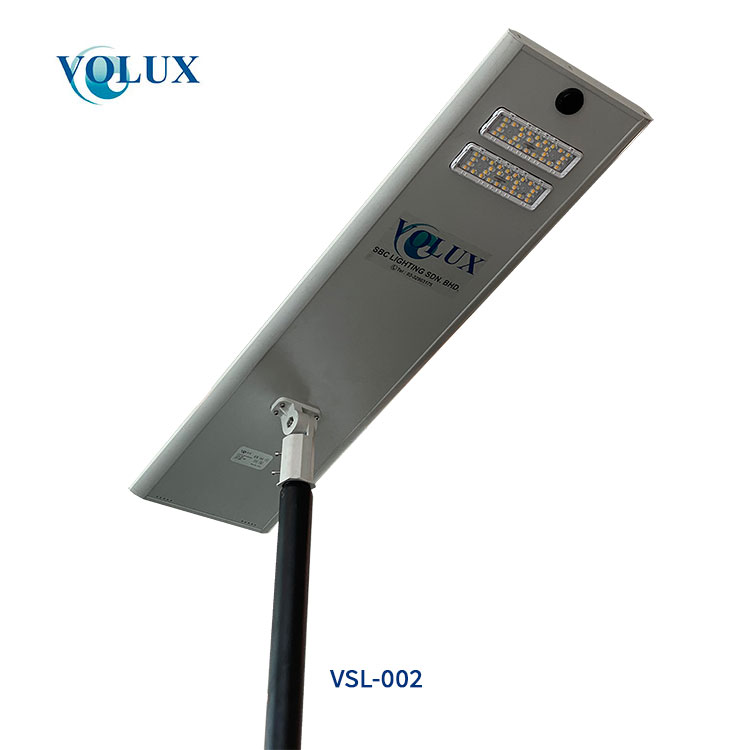

VSL-002 All-In-One Solar LED Street Light
Streamline outdoor lighting with the Volux All-in-One Solar LED Street Light, available in Standard, JKR (Jabatan Kerja Raya Malaysia) and DBKL (Dewan Bandaraya Kuala Lumpur) Specifications. Both models feature adaptive brightness control, up to 3 days of battery autonomy, and IoT-enabled smart monitoring for seamless energy management. Designed for efficient, hassle-free installation, these lights provide sustainable and reliable performance for various outdoor applications.
Smart Street Light Controller
Enhance street lighting efficiency with our advanced controller, designed for seamless remote management and optimization. Key features include:
- Real Time Monitoring Instantly receive critical solar facility data, including voltage, current, energy levels, lighting status, faults, and task updates.
- Controllable Lighting Time Adjust lighting schedules remotely via the platform, ensuring seasonal flexibility without on-site intervention.
- Dimming Plan Utilize IoT solar data to create optimized dimming schedules for peak performance, with remote adjustments for convenience and efficiency.
Product Specification
| Specification | 40W | 60W | 80W | 100W | 120W | 150W | ||
|---|---|---|---|---|---|---|---|---|
| Efficiency | 150 - 170 lm/w | |||||||
| Size | Standard | 1490x420x44mm | 1490x580x44mm | 1490x735x44mm | - | |||
| JKR | - | 1490x580x44mm | - | 1490x735x44mm | - | |||
| DBKL | - | 1490x735x44mm | - | 2110x828x58mm | ||||
| CCT | 3000-6500K (3500K standard JKR Spec) (3000K DBKL Spec) | |||||||
| CRI | >70 | |||||||
| Lithium Iron phosphate (LiFePO4) Battery | ||||||||
| Battery Capacity | Standard | 30Ah | 40Ah | 60Ah | 104Ah / 128Ah | - | ||
| JKR | - | 25.6V 45Ah (1152W) | 25.6V 60Ah (1536W) | - | 25.6V 104Ah (2662W) | - | DBKL | - | 25.6V 104Ah (2662W) | - | 25.6V 188Ah (4813W) | 25.6V 235Ah (6016W) |
| System Voltage | 25.6V | |||||||
| Working Temperature | -10 to 60°C | |||||||
| Controller | ||||||||
| Charge Time | Standard | 40W to 60W PWM, 80W to 120W MPPT charging, 4 -6 hours | ||||||
| JKR | MPPT charging, 4.5 hours peak | |||||||
| DBKL | 6 - 8 hours with standard illumination condition | |||||||
| Lighting | Standard | Whole night (12 hours) with up to 3 days autonomy | ||||||
| JKR | Whole night (12 hours) with up to 2 days autonomy (80% D.O.D) | DBKL | Whole night (12 hours) with up to 3 days autonomy | |||||
| Mode | Time Control / Light Dimming Control / MW Sensor Control | |||||||
| Solar Panel | ||||||||
| Power | Standard | 80W | 100W | 150W | 180W | - | ||
| JKR | - | 150W | - | 210W | - | |||
| DBKL | - | 210W | - | 320W | ||||
| System Voltage | Standard | DC12V | DC12V/24V | - | ||||
| JKR | - | 24V | - | 24V | - | |||
| DBKL | - | 36V | - | 36V | ||||
| Efficiency | >19% | |||||||
| Microwave Sensor | Yes (Standard) | Optional | ||||||
| Casing Material | Aluminium Alloy | |||||||
| Smart Control | Smart IoT nema controller for Real Time Solar Lights Monitoring (Optional) | |||||||
| IP Ratings | IP66 | |||||||
| Recommended Height | Standard | 3 - 6m | 6 - 8m | 8 - 10m | 8 - 12m | - | ||
| JKR | - | 6 - 8m | 7 - 9m | - | 9 - 12m | - | ||
| DBKL | - | 6 - 8m | 7 - 9m | - | 9 - 12m | |||
| Product Warranty | 5 Years | |||||||
